The EEG@Home project: Independent physiological measurements of epilepsy patients from the comfort of their own homes

Epilepsy is a neurological disorder afflicting 65 million worldwide. It is characterized by recurrent seizures. Such epileptic seizures are often selfreported by people with epilepsy themselves and understanding the frequency and occurrence of these seizures is essential to define individual treatment plans. It is often very difficult for people with epilepsy to report their seizures accurately, which may be because events occur in sleep, or a period of confusion after a seizure may hinder accurate reporting. New approaches to improve the accuracy of seizures reporting through continuous monitoring of biosignals might therefore inform personalized treatment approaches and thereby improve the quality of life (QOL) of patients. Monitoring of physiological and behavioral factors such as muscle activity, electrical skin conductance, and heart rate can further inform the detection of seizures as these variables change before, during and after a seizure.

As part of the RADAR-CNS programme, Prof Richardson’s team has examined the feasibility and acceptability of wearable biosignal sensors in people with epilepsy (Bruno, 2018 and 2020a, 2020b; Simblett, 2020), and reviewed the currently available products in this domain (Bruno, 2020c).

Interviews were conducted to understand the experiences of the participants with biosensors during the RADAR-CNS study. Ease of application, concerns of data privacy and their perceived comfort and appearance were some key requirements highlighted by people with epilepsy. Furthermore, it is clear that there is not yet a fully-developed system for monitoring biosignals at home in people with epilepsy. The value of continuously monitored data could be extremely high: for example, Prof Richardson’s team is part of the My Seizure Gauge consortium, which has shown how the pattern of seizure occurrences self-reported by subjects in electronic diaries can be used forecast clinical electrographic seizures (Karoly, 2020).

Studies have provided strong evidence that video EEG monitoring is the gold standard for epilepsy diagnosis. However, long term monitoring within the hospital setting increases patient costs and involves logistical issues such as ensuring correct placement of scalp electrodes and accurate positioning of the camera over long periods of recording. Consequently, there has been a great effort in the research and clinical domains to introduce a long term, mobile, home-monitoring technology, which is reliable, non-invasive, self-applicable and acceptable to people with epilepsy. ​

The EEG@Home procedure aims to investigate the reliability and feasibility of frequent physiological measurements performed by epilepsy patients independently, from the comfort of their own homes. Data will be recorded with an ANT Neuro eego™ 8 channel system, in combination with a wrist-worn smartwatch (the FitBit Charge 3) and on a smartphone application developed by Seer Medical. The outcomes of this study could bolster understanding of the individual seizure cycles and seizure triggers, thereby leading to new strategies for daily assessment and targeted therapies. Overall, such an endeavor will provide further support for people with epilepsy to cope better with the unpredictability of epileptic seizures, reduce anxieties and allow more independence in their activities of daily living.

This observational study plans to enroll 12 participants with epilepsy who were referred to the epilepsy clinics at King’s College Hospital and partner hospitals as part of their routine clinical care. The enrolled participants will be introduced to the EEG acquisition system, wrist worn smartwatch and smartphone app during their 1st introductory and training visit. Following this, monthly follow-up visits (visit 2-7) will be scheduled every month in the participant’s home or the research facility as per preference. The final assessment of usability and acceptability of the technology will be conducted after the last (7th) visit through questionnaires and a 15 minute interview.

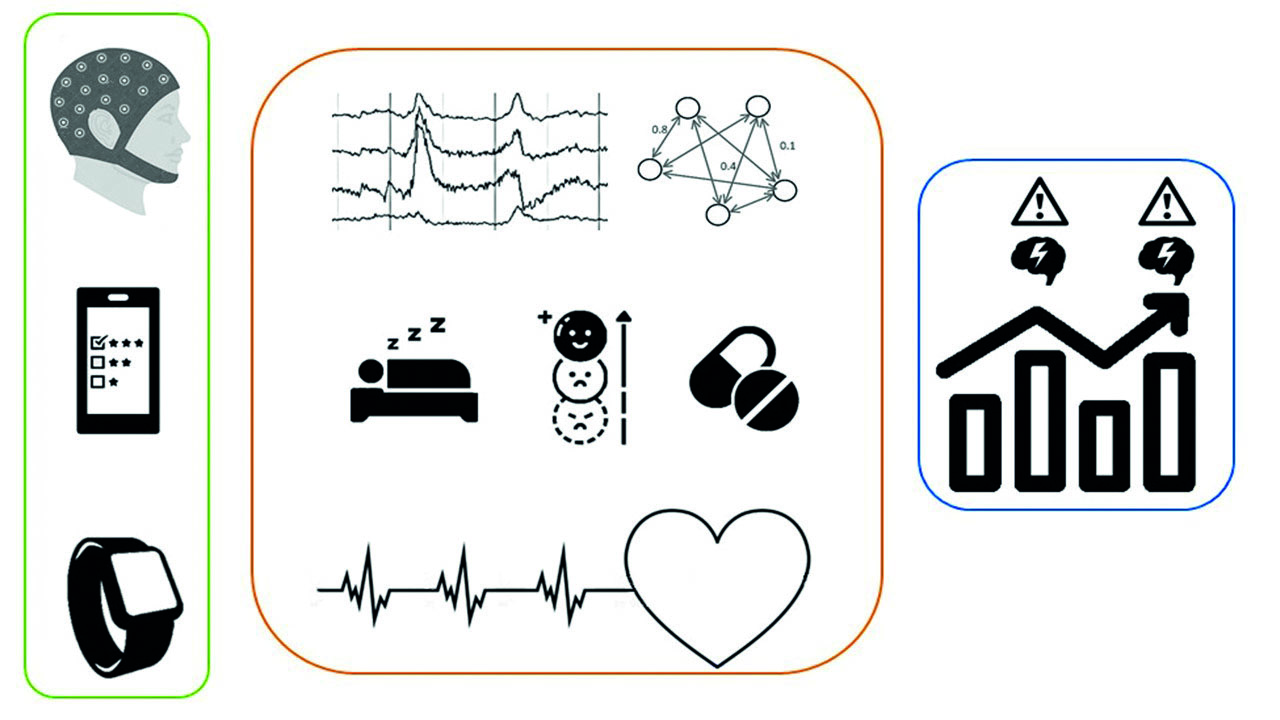

Figure 1: A diagram that summarises how the EEG@HOME study works. The left part of the diagram contains icons that represent how measurements are taken: via EEG cap (ANT Neuro 8 channel waveguard™ touch dry EEG cap), smartphone app (SeerMedical) and smartwatch (FitBit Charge4). The middle part of the diagram contains icons representing the different measurements recorded: scalp EEG, heart rate, seizure occurrence, medication taken, sleep quality, stress and mood. The right part of the diagram finally represents the aim of the study; using all the information collected to prospectively identify periods of higher seizure risk and to improve the management of epilepsy.

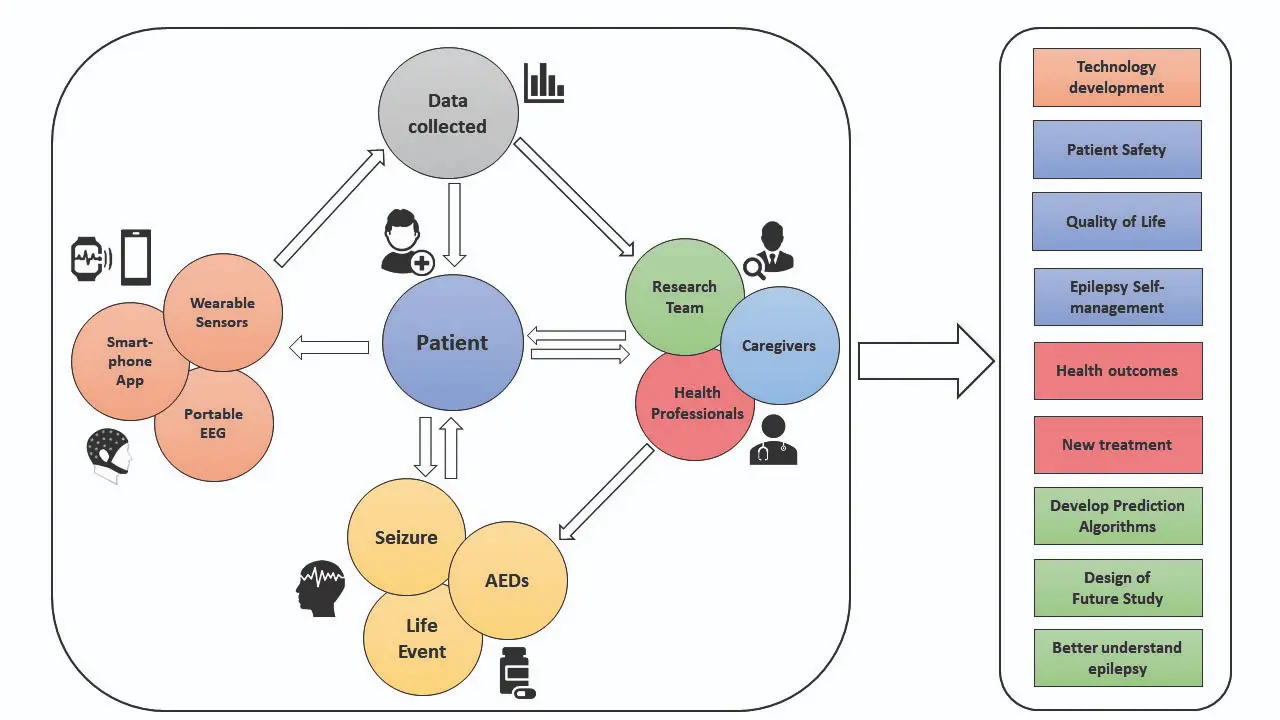

Figure 2. An eHealth model of new technology for patients with epilepsy - Every day, patients with epilepsy face the possibility of having a seizure or other stressful life events that could affect their mood, sleep and behaviour. The continuous use of wearables and e-diary to safety acquire noninvasive measurable variables that can be associated with the occurrence of their seizure will help patients in the management of their condition providing the doctor with reliable information to monitor and control their patient s therapy and improving the interaction between patients, caregivers and heath care providers. All the data collected could also allow the research teams to have reliable information for the develop of prediction algorithms and for the design of future feasible studies. (Biondi, 2021)

The eego™mini amplifier and the 8 channel waveguard™ touch cap solution provided to the participants will enable participants to wear the EEG cap twice daily, to perform a 10 minute recording with the eego software. The eego mini system meets several of the hard-set technical requirements outlined by Pinho and colleagues for EEG systems which could be deployed for clinical purposes, such as dry electrodes, signal resolution, sampling frequency, comfort, portability and event detection (Pinho, 2017).

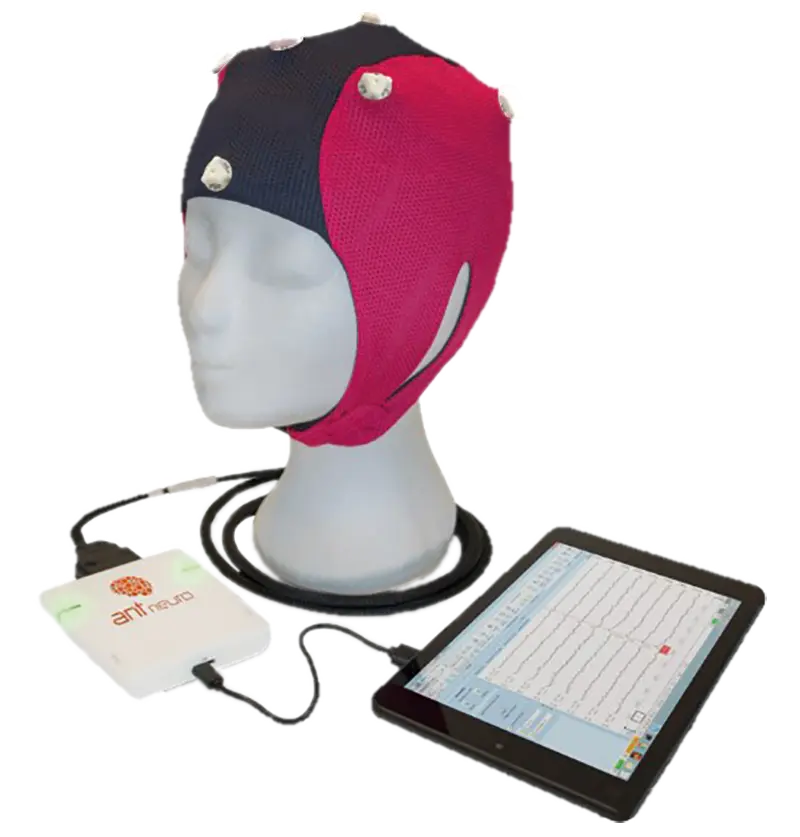

Figure 3: ANT Neuro eego™ mini-series and ANT Neuro waveguard™ touch

The Fitbit Charge 3 provides continuous estimates of sleep stages, heart rates, step and calorie counts, documented in the Fitbit smartphone app. The wristworn device has both a triaxial accelerometer and a photoplethysmogram (PPG) integrated within it, while the accelerometer measures body orientation in a 3D space, the PPG decodes heart rate information from blood flow in the skin. The Seer Medical App allows users to self-report different event types and times, add their personal notes and to review and visualize them later. All data will be pseudonymized, encrypted, recorded in password protected applications and uploaded to servers that have been approved for long term patient data collection.

Data acquired from all the three biosensors listed above, will be analyzed to further our understanding of complementary dimensions involved in epilepsy. A trained neurologist will examine the 10 minutes of EEG recorded by the participant in resting, eyes closed state and mark all spike waveguard discharges and focal interictal epileptiform discharges (IEDs). 20 seconds of clean, artifact free and IED free EEG will be segmented out from these 10 minute recordings to extract a variety of EEG features. Alpha power shifts and the power spectra will be calculated, structural properties of the functional brain networks will be quantified through graph theory metrics and brain network ictogenicity (BNI), a computer modeling framework will be deployed in parallel to understand the predilection of a brain network to generate seizures. Additionally, the heart rate of participants will be monitored 24*7 and sleep quality assessments will be performed daily. For both heart rate and sleep rankings, changes which relate to or are predictive of seizure occurrences will be investigated. Participants will report changes in mood, sleep quality, medication compliance and seizure events via questionnaires on the Seer Medical App, and the value of these factors in predicting seizures will be studied. At the end of the study, after 6 months of collecting data at home, the System Usability Scale (SUS) and Post-Study System Usability Questionnaire (PSSUQ) will be followed by a 15 minute interview to understand the overall experience, comfort, issues and suggestions of the participants.

The EEG@Home study is one of the first studies of its kind to document data from a combination of approaches such as self-applied dry EEG, wearables and phone apps. Such a study will pave the way for data acquisition trials that aim to work towards self-management and long-term home monitoring of epilepsy patients. ANT Neuro is proud to have collaborated with the esteemed team of King’s College London!

IoPPN twitter and instagram: @KingsIoPPN

KCL twitter: @KingsCollegeLon

KCL instagram: @kings_college_london ​

Biondi, Andrea, et al. “Remote and Long-Term Self-Monitoring of Electroencephalographic and Noninvasive Measurable Variables at Home in Patients With Epilepsy (EEG@ HOME): Protocol for an Observational Study.” JMIR Research Protocols 10.3 (2021): e25309.

Bruno, Elisa, et al. “Wearable technology in epilepsy: The views of patients, caregivers, and healthcare professionals.” Epilepsy & Behavior 85 (2018): 141-149.

Bruno, Elisa, et al. “Patients self-mastery of wearable devices for seizure detection: a direct user-experience.” Seizure 81 (2020): 236-240.

Bruno, Elisa, et al. “Day and night comfort and stability on the body of four wearable devices for seizure detection: A direct user-experience.” Epilepsy & Behavior 112 (2020): 107478.

Bruno, Elisa, et al. “Seizure detection at home: Do devices on the market match the needs of people living with epilepsy and their caregivers?” Epilepsia 61 (2020): S11-S24.

Simblett, Sara Katherine, et al. “Patients’ experience of wearing multimodal sensor devices intended to detect epileptic seizures: a qualitative analysis.” Epilepsy & Behavior 102 (2020): 106717.

Karoly, Philippa J., et al. “Forecasting cycles of seizure likelihood.” Epilepsia 61.4 (2020): 776-786.

Pinho, Francisco, et al. “myBrain: a novel EEG embedded system for epilepsy monitoring.” Journal of medical engineering & technology 41.7 (2017): 564-585.
